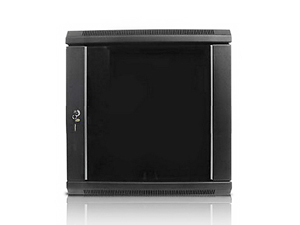

iStarUSA WM1545B 15U Wallmount Server Cabinet
Click to enlarge
Click to enlarge

iStarUSA WM1545B 15U Wallmount Server Cabinet
WM1545B 15U 450mm Depth Wallmount Server Cabinet
  • Sturdy and Rugged Welded Frame Structure Comes Pre-Assembled
  • Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
  • Three Ways, Top, Bottom, and Rear Cabling Tunnels
  • Wallmount or Desktop Standalone
  • Meet IP20 Protection Grade
  • Enforced Strengthen Glass Front Door with Security Key Lock
  • Removable Side Panels with Easy Handy Latches
  • 2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
  • Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish
  • Front Lock [side panel key lock]

Elegant and secured WM1545B wall mount cabinet by CLAYTEK. The easy side panel access is convenient to perform routine maintenance, but also can be locked to prevent unauthorized access. Three ways, top, bottom, and rear cabling tunnels enable data and cable routing. WM series incorporate optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. Heat-treated glass door provides extra strength and able to silkscreen logos, marks, and labels to boost product image.

Model Number WM1545B
RoHS Compliance Version Yes
Form Factor 15U
Material Posts:2.0mm SPCC High-Quality Cold Roll Steel
Enclosure:SPCC 1.2mm
Loading Capacity 130 lbs
Supported Chassis Depth 16" and under
Internal Dimensions Depth: 16" max
Cooling Optional 2x120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120)
Dimensions (WxHxD) 23.62" x 30.31" x 17.72"
600 mm x 770 mm x 450 mm
Notes 1. HTS code: 8473.30.5100 (ECCN is not applicable).
