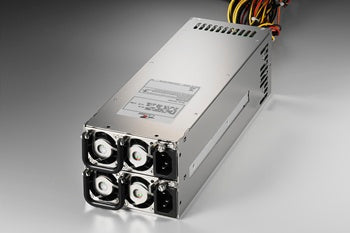

Zippy G1W2-5860V3V 2U Redundant Power Supply
  • Zippy G1W2-5860V3V 2U Redundant Power Supply
  • Zippy G1W2-5860V3V 2U Redundant Power Supply
Zippy G1W2-5860V3V 2U Redundant Power Supply
$1,331.00 $1,499.00

High Efficiency　

300.00x101.20x84.00  (mm)
11.81x3.98x3.31  (inch)

VOLTAGE:  90V ~ 264VAC (WITH  10% TOLERANCE)
FREQUENCY: 47Hz ~ 63Hz
INPUT CURRENT: 13/6.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE
INRUSH CURRENT: 60/80A @ 115/230VAC (25℃)
POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD

Output Voltage Output Current Min. Output Current Max. Output Current Peak Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 0.5 32.00
5% 1% 50mV
+12V 2 70
5% 1% 120mV
-12V 0 0.8
10% 1% 120mV
+3.3V 0.5 32
5% 1% 50mV
+5VSB 0.1 3.5
5% 1% 50mV




























+5V AND +3.3V TOTALOUTPUT MAX: 190W
TOTAL OUTPUT MAX: 860W

* TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: >80% TYPICAL AT 115 VAC FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION:110%~150%
* OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V,+12V→13.3~14.3V;
* SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTION: +5V→35~48A, +12V→77~105A, +3.3V→35~48A
* SAFETY: TO MEET UL, CUL, TUV, CB
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* WARMING METHOD: BUZZER SOUND, TTL, FAULT LED
