Features
- Universal Fit Most of Rackmount Chassis and Equipment
- Double Rear Doors Provide Convenience and Take Less Space to Open
- Front, Rear, and Side Security Lock to Prevent UnauthorizedAccess to Equipment and Data
- Easy Cabling Management. Cable Entry Provided from Top/ Bottomand Front/ Back
- Fully Adjustable Rails. Mounting Rails are HorizontallyAdjustable to Ensure the Best Fit of Rack-mount Chassis
- Vented Doors Provide Maximum Air Flow
- 120mm AC Cooling Fans Provide Excellent Air Circulation
- Custom Front Panel Door with Silk Screen Option Enhance ProductImage and Uniformity in Product Line
- Locking Mechanism Design on Casters
- Comes with M5 Mounting Screws and Cage Nuts

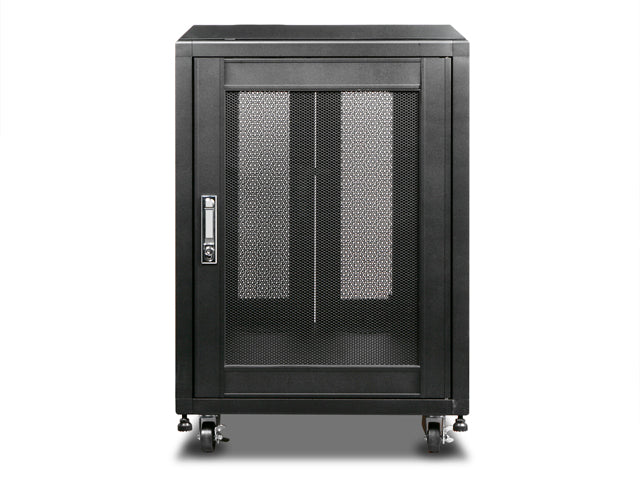

WN Series Cabinet is built with high-quality aluminum/steel structures.
With vented doors and cooling fans, WN series provides excellent aircirculation for servers and other devices.
Cabinet is completely lockable from the front/ rear doors and sidepanels to prevent unauthorized access.
This stylish and secure 19" rack-mount cabinet protects your investmentin computer equipment against environmental elements heat and dust.
WN Series offer a superior environment for mission-critical equipment.
*Please call in to order and discuss shipping options or we will call you after the order has been placed
Model Number
WN1510
RoHSCompliance Version
Yes
FormFactor
15U
Material
Side Panel:SPCC t:0.8mm
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm
Color
Black (RAL9011)
LoadingCapacity
2200 lbs
SupportedChassis Depth
34" and under
InternalDimensions
Height: 27.25"
Depth: 34.25" max
Cooling
Up to 3 sets of 120mm 120V AC fans can beinstalled on the top (p/n: WA-SF120-2FAN) Pre-installed 1 set
Dimensions(WxHxD)
23.50" x 35.25" x 39.50"
597 mm x 895 mm x 1,003 mm
Notes
1. for HP/ DELL/ IBM servers equipped withsliding rails, please contact sales person for availability of modelnumber WN1510-EX.
2. HTS code: 8473.30.5100 (ECCN is not applicable).
