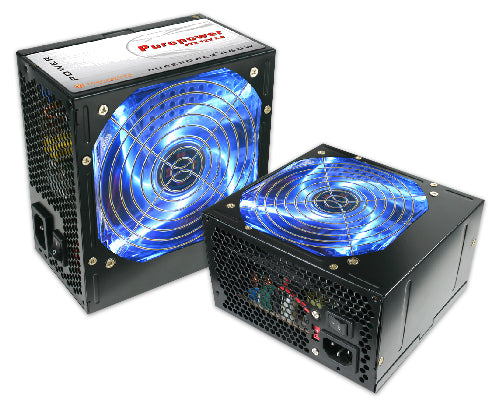

Thermaltake PurePower W0068RUC 460W ATX12V 2.0 Power Supply
  • Thermaltake PurePower W0068RUC 460W ATX12V 2.0 Power Supply
  • Thermaltake PurePower W0068RUC 460W ATX12V 2.0 Power Supply
Thermaltake PurePower W0068RUC 460W ATX12V 2.0 Power Supply
$112.00
Features
Compliant with ATX 12V 2.0 version
Support 6-pin PCI-Express connector for
high-end VGA card
Active PFC, improved energy efficiency and reduced current load on AC delivery systems
12cm Blue LED fan providing better air-flow, lower noise and illuminate for your PC system
Intelligent Black Cable Sleeving, provide optimum air flow inside the case
Protections against Over Power, Short-Circuit, Over-current, Overload, and Over-temperature
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CSA, and CUL certification
Performance Low Noise   Serial ATA Light
ATX 12V 2.0 PCI Express Connector 12025 Fan Cable Sleeving

Detail Information
Total Output Connector
24-pin
Main Connector
x1
4-pin +12V
Power Connector
X1
4-pin Peripheral
Power Connector
X9
4-pin Floppy Drive
Connector
X2
5-pin
SATA Connector
X2
6-pin
PCI Express Connector
X1
Technology Features
Dual +12V Rails
6-pin PCI
Express Connector
New 24(20) pin
Main Connector
12cm Blue LED Fan:
Low Noise and Illuminate
your PC System
D-Type 4 pin Connector
Honeycomb Vent:
Best Thermal Performance
Cable Application
Intelligent Cable Management:
Colorful cable sleeving
Optimum air-flow
Package View
Performance
OUTPUT

+3.3V
+5V
+12V
+12V
-12V
+5VSB
Max. Load
30A
30A
15A
15A
0.3A
2.0A
Min. Load
0.5A
1.0A
1.0A
1.0A
0A
0A
Load Reg.
+5% ~ -5%
+5% ~ -5%
+5% ~ -5%
+5% ~ -5%
+10% ~ -10%
+5% ~ -5%
Ripple
V(p-p)
50mV
50mV
120mV
200mV
120mV
50mV
Purepower 460W Fan RPM v.s Temp.
Purepower 460W Fan Voltage v.s Temp.
Detail Specifications
P/N
W0067
W0067-1
W0068
W0068-1
Maximum Power
460 Watts
Color
Black
Switch
ATX Logic on-off additional power rocker switch (115/230 V selector switch)
Cooling System
Blue LED 12cm Fan:
SPEED:
2000RPM (+/- 10%)
DIMENSION:
120 x 120 x 25 mm
Temp. Auto Control
2055 rpm at 25C ~ 2082 rpm at 40C

P. G. Signal
100-500ms
Over Voltage Protection recycle AC to reset
+5V trip point < +7.0V
+3.3V trip point < +4.5V
+12V trip point <+15.6V
Dimensions
Unit Size
15cm(L)x14cm(W)x8.6cm(H)
Net Weight
1.9kg
1.9kg
1.8kg
1.8kg
Noise
17dBA at 1300RPM

Input

Input Voltage
115 VAC / 230 VAC
Input Frequency Range
47 ~ 63 Hz
Input Current
8.0A / 4.0A
Hold-up Time
16ms
Efficiency
> 70%
Logo introduction
Performance Low Noise
Serial ATA Light ATX 12V 2.0
PCI Express Connector 12025 Fan Cable Sleeving
