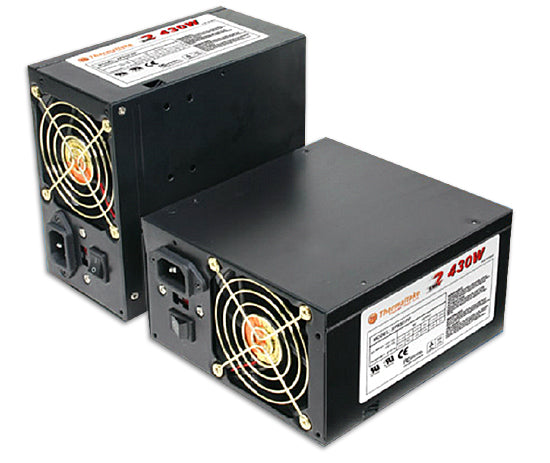

Thermaltake TR2 W0070 430w Power Supply
  • Thermaltake TR2 W0070 430w Power Supply
  • Thermaltake TR2 W0070 430w Power Supply
Thermaltake TR2 W0070 430w Power Supply
$56.00
Performance Low Noise Serial ATA 8025 Fan
Connector Cable Sleeving   Connector
Features
Support 6-pin PCI-Express connector
, improved energy efficiency and reduced current load on AC delivery systems
Dual 8cm fan, provide best air-flow to cool your PC system
Intelligent Black Cable Sleeving, provide optimum air flow inside the case
Protections against Over Power, Over Voltage, Short-Circuit, and Protection Reset
Safety / EMI Approvals: FCC, UL, CUL, CSA, and CE certification


@

Key Points
Total Output Connectors
X1
24-pin
Main Connector
@		 X1
4-pin+12V
Power Connector
X9
4-pin Peripheral
Power Connector		 X2
4-pin Floppy Drive Connector
X2
5-pin SATA
Connector
@		 X1
6-pin PCI Express Connector
Technology Features
6-pin PCI Express Connector
@		 New 24(20) pin Main Connector

D-Type 4 pin Connector
@		 Package View
Cable Application
Intelligent Cable Management:
Black cable sleeving
Optimum air-flow
Cooling System
Dual Fan Design-Optimum Air flow:
80 x80 x 25 mm, One fan outlet, the other fan for intake (one faces back, other faces front)
Performance
OUTPUT

+5V
+3.3V
+12V
-5V
-12V
+5VSB
Max. Load
30A
20A
18A
18A
0.5A
0.8A
Min
Load
1.0A
0.5A
1.0A
0A
0A
0A
Load Reg.
+5%~-5%
+5%~-5%
+5%~-5%
+10%~-10%
+10%~-10%
+5% ~ -5%
Ripple
V(p-p)
50
mV
50
mV
120
mV
100
mV
150
mV
50
mV


@

Thermal Performance
TR2 430W Fan RPM V.S. Temp
TR2 430W Fan Voltage Control By Loading/Temp


@

Detail Spec.
PN

W0070
Noise
19dB at 2000RPM
Maximum Power
430 Watts
P.G. Signal
100-500ms
Color
Black
Switch
ATX Logic on-off
additional power
rocker switch
(115/230 V selector switch)
Over Voltage Protection Recycle AC to Reset
+5V trip point < +7.0V
+3.3V trip point < +4.5V
+12V trip point < +15.6V
N/A
DIMENSION
Unit Size
16cm(L)x15cm(W)x8.6cm(H)
Net Weight
2.6kg
Cooling
System
Dual 8cm Fan:
SPEED:
2400 RPM(+/-10%)
DIMENSION:
80 x 80 x 20 mm
TEMP. AUTO CONTROL
3010 rpm at 25¢XC~
3070 rpm at 40¢X
INPUT
