SFX power supplies are mostly usedfor in mATX systems. SFX PSUs, or variants thereof, have been used in systems bysome big brands, including HP and eMachines. But as the pushto build smaller, quieter, more powerful system for appliance application (i.e.HTPC, multi media PC to support Blu Ray).

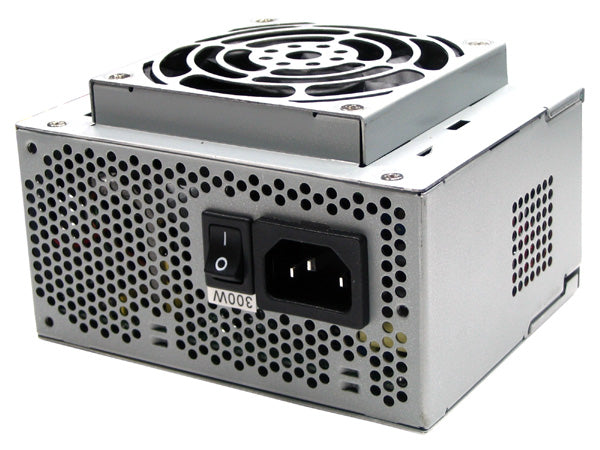

This SEASONIC SS-300SFD Active PFC F3 - 80 PLUS Power Supply aims to providethat power but operate at 80% or better efficiency since most of these appliancesystem will be on 24/7/356.
All this but in the Dimensionof: Length 4.9? x Width 3.9? x Tall 3.0?
| SEASONIC SS-300SFD Active PFC F3 - 80 PLUS | ||||||
| AC Input | 100 ~ 240 VAC ~5A, 50-60 Hz | |||||
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| Maximum Output Current | 20A | 20A | 8A | 14.5A | 0.8A | 2.0A |
| Maximum Combined | 125W (28A) | |||||
| 300W | ||||||
| SFX12V v3.1: Efficiency Vs Load | |||
| Loading | 100% | 50% | 20% |
| Required Min. Efficiency | |||
| Recommended Min Efficiency | 77% | 80% | 75% |
There are a total of five set of output cable coming outof the power supply:
-
11" cable for main 24-pin ATX connector
-
11" cable for 4-pin AUX12V connector
-
15" cable with two SATA drive connectors
- 2 x 18" cables with two 4-pin IDE drive connectors and one floppy connector
