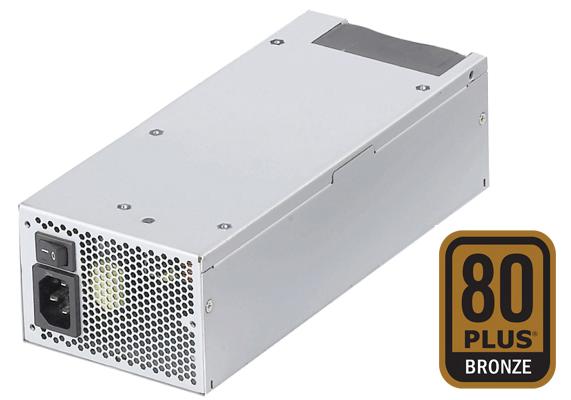

Sparkle SPI400W7BB 400W 2U 80 Plus Bronze Rackmount Power Supply
Sale price  $249.00 Regular price  $275.00
W7BB" Familly SPI400W7BB Power Supply.

This Industrial 2U Power supply is most ideal forWorkstation application.

It has one 24pin and one 8pin Plug for the motherboard.
The MTBF is 100,000 hours onmaximum load at +25°C.


One Specific note, for themotherboard that still need -5V, this 400watt DOES support -5V upto .03A as see below:
Output Voltage
Minimum Load
Maximum Load
Load Reg. Ripple &Noise
+3.3V 0.3A 18A
± 5%
50mV P-P
+5V 0.3A 20A
± 5% 50mV P-P
+12V1 0.5A 16A
± 5% 120mV P-P
+12V2 0.5A 16A
± 5% 120mV P-P
-12V 0.0A 0.5A
± 10% 120mV P-P
+5Vsb 0.0A 3.0A
± 5% 50mV P-P
-5V
0.0A 0.3A
± 10% 100mV P-P


Typically installed into a 2U or 3U Rack Mountable Chassis. This 400watt 2U Power Supply has aDimensions (LxWxH) of:

7.89" x 3.9" x 2.75" Inch or 200x 100 x 70mm


Connectors:

Main 24Pin, (1) EPS 8-Pin, (1)12V 4-pin, (4) Molex 4-Pin, (2) Serial-ATA, (1) FDD 4-Pin
