Brand : SPARKLE

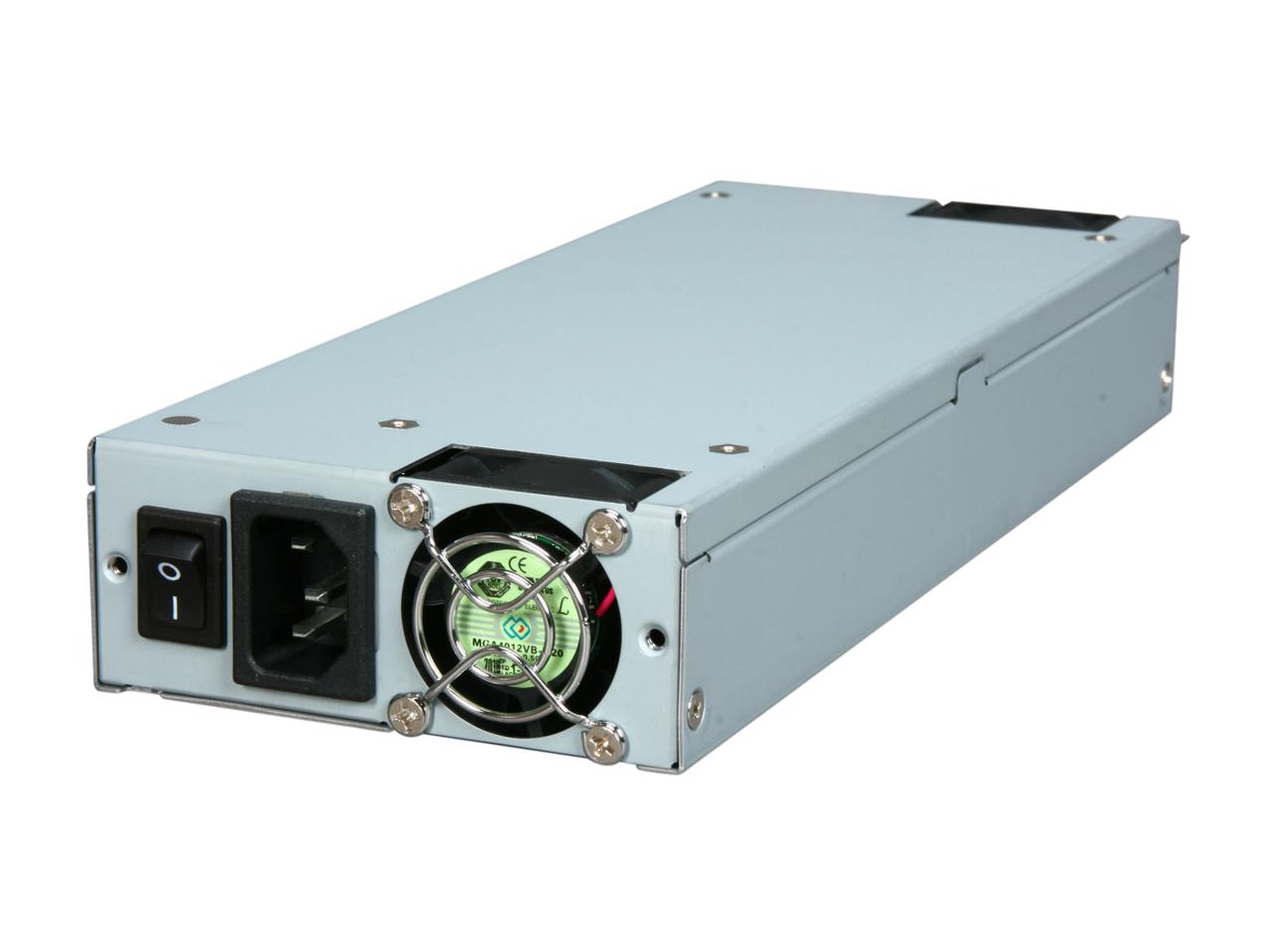

Model: SPI700U4BB
Type: ATX12V / EPS12V Single Power Supply
Maximum Power: 700W
Output Current +3.3V@24A, +5V@30A, +12V1@16A, +12V2@16A, +12V3@16A,+12V4@16A, -12V@0.5A, +5VSB@4.0A
Input Voltage 90 ~ 264Vac, Full Range Input
Input Frequency Range 47 - 63 Hz
Input Current Max 10A @ 115Vac, 5.0A @ 230Vac
Fans Internal 12V DC fan
MTBF 100,000 hours on maximum load at +25C
Efficiency Typical up to 85%
Hold-up Time 16 ms minimum at nominal input voltage
Protection Output over voltage, short circuit, and over currentprotection
Humidity 85% on operating, 95% on storage
Temperature 0� C - 50� C
Dimensions 9.85" x 3.9" x 1.6"
Features
Features 80PLUS, RoHS Compliant Active Power Factor Correction (PFC)meet EN61000-3-2 Compatible with European Union Directive 2002/95/EC(Restriction on Hazardous Substances). Remote ON/OFF function Low noiseand ripple 100% Hi-pot, ATE, and burn-in tested Re-settable power shutdown Complies with FCC part 15 subpart J class B 115Vac operation, andCISPR 22 class B at 230Vac operation
Sale price
$225.00
Regular price
$250.00
Model: SPI700U4BB
Type: ATX12V / EPS12V Single Power Supply
Maximum Power: 700W
Output Current +3.3V@24A, +5V@30A, +12V1@16A, +12V2@16A, +12V3@16A,+12V4@16A, -12V@0.5A, +5VSB@4.0A
Input Voltage 90 ~ 264Vac, Full Range Input
Input Frequency Range 47 - 63 Hz
Input Current Max 10A @ 115Vac, 5.0A @ 230Vac
Fans Internal 12V DC fan
MTBF 100,000 hours on maximum load at +25C
Efficiency Typical up to 85%
Hold-up Time 16 ms minimum at nominal input voltage
Protection Output over voltage, short circuit, and over currentprotection
Humidity 85% on operating, 95% on storage
Temperature 0� C - 50� C
Dimensions 9.85" x 3.9" x 1.6"
Features
Features 80PLUS, RoHS Compliant Active Power Factor Correction (PFC)meet EN61000-3-2 Compatible with European Union Directive 2002/95/EC(Restriction on Hazardous Substances). Remote ON/OFF function Low noiseand ripple 100% Hi-pot, ATE, and burn-in tested Re-settable power shutdown Complies with FCC part 15 subpart J class B 115Vac operation, andCISPR 22 class B at 230Vac operation
