Features:

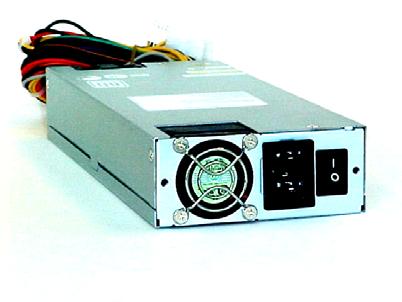

Model: SPI4001UG-B204
$135.00
Model: SPI4001UG-B204
- Complied with ATX 12V and EPS12V standard
- Active Power Factor Correction (PFC) meet EN61000-3-2
- High efficiency and reliability
- Compatible with European Union Directive 2002/95/EC (Restrictionon Hazardous Substances).
- Remote ON/OFF function
- Internal 12V DC fan included
- Noise Killer (thermal fan speed control function)
- Low noise and ripple
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Complies with FCC part 15 subpart J class B 115Vac operation, andCISPR 22 class B at 230Vac operation
- Approved by UL,CSA or CuL 60950-1, TUV or VDE, EMC, FCC, CE, CBreport.
- Total Power: 400W
- Input Range: 90 ~ 264Vac(RMS), Full Range Input
- Frequency: 47 ~ 63Hz
- Input Current: Max 6.3A (RMS) @ 115Vac, 3A (RMS) @ 230Vac
- Temperature Range:
- Operating: 0oC ~ +50oC on full load
- storage & shipping: -20oC ~ +80oC - Humidity: 85% on operating, 95% on storage
- Dielectric Withstand: Primary frame ground 1800V AC for1 second
- Efficiency: typical up to 86%
- Rise time: Less than 20ms
- Hold-up Time: 20ms minimum at nominal input voltage
- Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1msminimum (TTL and CMOS compatible)
- Leakage Current: Less than 3.5mA at 264Vac, 50Hz
- MTBF: 100,000 hours on maximum load at +25oC
- Dimensions (LxWxH): 220x100x40.5mm / 8.7x3.9x1.6inch
- Connectors:
- 1 - 20+4pin
- 1 - 4pin 12V P4
- 1 - 8pin Power
- 4 - 4pin Molex
- 1 - Floppy
- 2 - SATA
