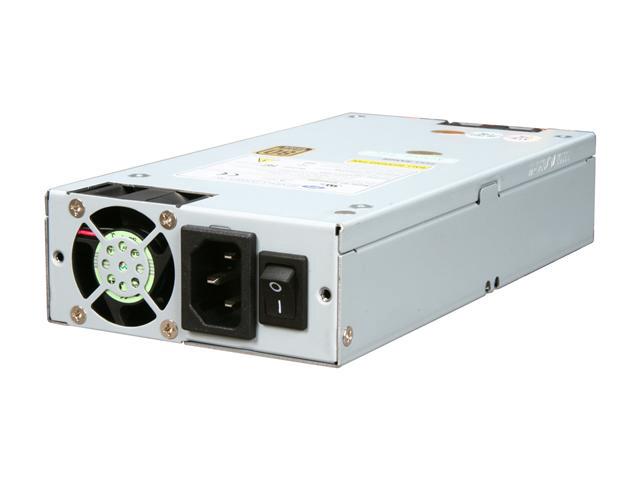

SPARKLE SPI300U4BB 300W Single 1U Switching Power Supply
  • SPARKLE SPI300U4BB 300W Single 1U Switching Power Supply
  • SPARKLE SPI300U4BB 300W Single 1U Switching Power Supply
SPARKLE SPI300U4BB 300W Single 1U Switching Power Supply
$149.00
BrandSPARKLE POWERModelSPI300U4BB

SPEC

TypeATX/ ATX12VSingle/RedundantSingleMaximum Power300WOutput Current+3.3V@14A, +5V@16A, +12V1@16A, +12V2@16A, -12V@0.5A, -5V@0.3A, +5Vsb@3AInput Voltage90~ 264Vac (RMS), Full Range InputInput Frequency Range47- 63 HzInput CurrentMax5A (RMS) @ 115Vac, 2.5A (RMS) @ 230VacMTBF100,000 hours on maximum load at +25CEfficiency82%minimumHold-up Time17msminimum at nominal input voltageProtectionOutputover voltage, short circuit, and over current protectionHumidity85%on operating, 95% on storageTemperature0�C - 50� CDimensions7.5"x 3.9" x 1.6" inch / 190 x 100 x 40.5mm

Features

Features80Plus Bronze
Noise Killer (thermal fan speed control function)
Low noise and ripple
Re-settable power shut down
