$96.00

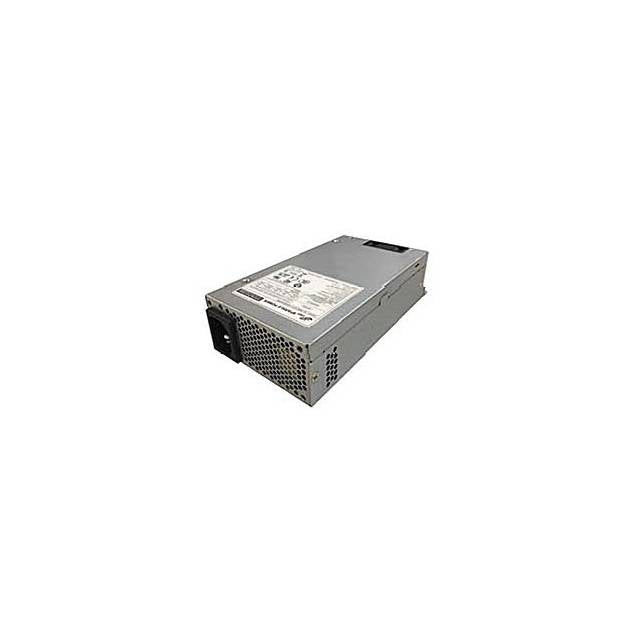

- Mfr Part Number: FSP220FEB-B204
-
Features:
- Complied with Flex ATX and ATX12Vstandard
- Active Power Factor Correction(PFC) meet EN61000-3-2
- High efficiency and reliability
- Compatible with European UnionDirective 2011/65/EU & (EU)2015/863 (Restriction on HazardousSubstances).
- Remote ON/OFF function
- Internal 12V DC fan included
- Low noise and ripple
- Output over voltage, short circuit,and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Complies with FCC part 15 subpart Jclass B 115Vac operation, and CISPR 32 class B at 230Vac operation
- Approved by CB 62368 &60950-1 2nd , EMC. CUL/UL TUV, FCC, CE
-
-
Input:
- Input Range: 90 ~ 264Vac(RMS), Full Range Input
- Frequency: 47 ~ 63Hz
- Input Current: Max4A(RMS) @ 115Vac, 2A(RMS) @ 230Vac
- Inrush Current: No damage
-
Output:
- Total Watts: 220W
- Output Voltage: +3.3V @8A,+5V @ 12A, +12V@ 14A, -12V @ 0.3A, +5VSB@ 2.5A
- +3.3V and +5V total output not exceed 61W
- Temperature Range: Operating:0C ~ +50C; storage : -20C ~ +80C
- Humidity: 85% RH,Non-condensing on operating, 95%RH, Non-condensing on storage.
- Dielectric Withstand:Primaryframe ground 1800V AC for 2 second
- Efficiency: Typical >85%
- Altitude: The power supplyis applied for tropical climates and use at altitudes not exceeding5000m above Sea level
- Standby Power Consumption (5Vsb):
- Efficiency>45%@5Vsb/45mA &230Vac input (2013 Lot 6)
- Efficiency> 55% @ 5Vsb/550mA &230Vacinput
- Efficiency> 70% @ 5Vsb/1A &230Vacinput
- Efficiency > 70% @ 5Vsb/2.5A &230Vacinput
-
- Rise Time: Less than 20ms
- Hold-up Time: 16ms minimum at80% load
- Power Good Signal: Power ondelay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)
- Leakage Current: Less than3.5mA at 264Vac, 50Hz
- MTBF: A minimum predictedMTBF (MIL-HDBK-217) of 100,000 hours of continuous operation at +25C
- Dimensions (LxWxH):150x81.5x40.5mm/6x3.2x1.6inch
- RoHS Compliant
