- Intel EPS 12 V compliant
- Forward converter circuit
- High efficiency and reliability for industrial level
- Fully modular cables
- Easy-swap connector design
- 60 mm doubleball bearing fan
- Smart and Silent Fan Control (S2FC)
- Zero minimum load on 3.3 V rail
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 and EN61000-3-2 standards
Skip to product information

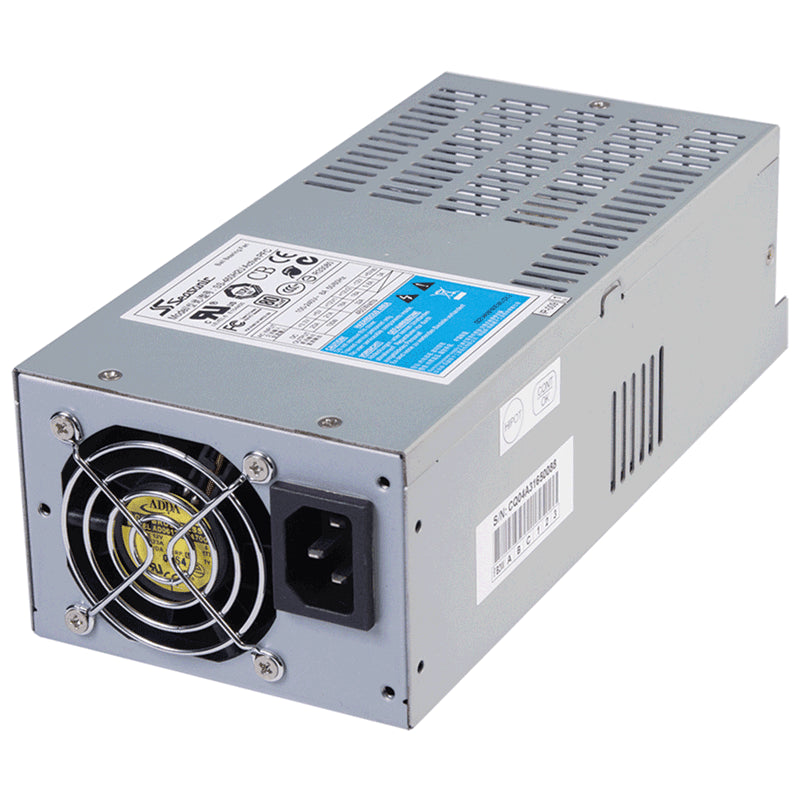

Seasonic Part Number: SS-400H2U
Features
Specifications
$250.00
Specifications
| |
Total Power -- 400 W |
|---|
| |
Input Voltage -- 100Vac / 240Vac |
|---|
| |
Input Frequency -- 50 / 60Hz |
|---|
| |
Input Current -- 7A |
|---|
| |
Fan Type -- 60 x 38mm |
|---|
|
|
Active PFC (99%) |
|---|
| |
High Efficiency (80%) |
|---|
| |
DC Outputs: |
|---|
| |
-- +3.3V: 20A |
|---|
| |
-- +5V: 21A |
|---|
| |
-- +12V1&+12V2: 16A |
|---|
| |
-- -12V: 0.8A |
|---|
| |
-- +5Vsb: 2A |
|---|
| |
Safety -- CB, CUL, UL, TUV, CCC |
|---|
| |
EMI/RFI -- CE, FCC, C-tick |
|---|
| |
RoHS & WEEE compliant |
|---|
| |
Dimension --225mm(8.9") x 100mm(3.9") x 70mm(2.7") |
|---|
