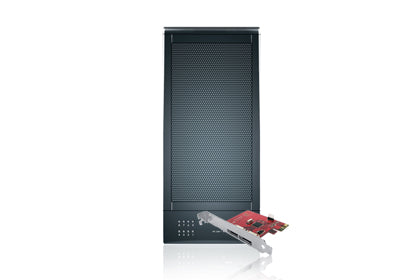

The TowerRAID TR8M-B is an 8-bay storage enclosuresfor high capacity storage needs. With built-in ventilating protectivescreen front panel, both units utilize cable-less backplane-design tosupport up to eight hard drives. Hard drives are installed on easyaccess hard drive trays for simple insertion and removal. Hard drivecooling is provided by a large 4.7 cooling fan located on the back ofthe units. The TR8M-B is a compact RAID tower uses only two cables toconnected eight SATA drives utilizing the latest SATA II portmultiplier technology. Using the bundled two ports eSATA PCIe adapter,the user could easily access eight hard drives via JBOD mode, or twodifferent sets of RAID 0, 1, 1+0 and 5 with spare. Units are availablein black (TR8M-B) and silver (TR8M) finish.
$475.00
- Eight 3.5-inch SATA hard disk drives totwo eSATA Port Multiplier interfaces.
- Accesses eight hard drives using only twocables.
- Supports JBOD, Spanning, RAID 0, 1, 1+0, 5with spare in two volume sets via software utilities.
- Cable-less backplane design supporthot-swappable SATA I and SATA II.
- Bundled with 2-port eSATA PCIe 1x Host BusAdapter.
- Supports Plug & Play for easyinstallation.
- Compact enclosure with dust-free cover.
- 300 watts power supply (90V to264V).
- Support PC, MAC and Linux. (Please notethat the host adapter card is based on Silicon Image chipset, whichcurrently only support up to MAC OS 10.5.1 by Silicon Image.)
Model TR8M-B Form Factor Compact Tower HDD Trays 8 Hot-Swappable 3.5" RAID Level RAID 0, 1, 10, 5, 5+spare, spanning and JBOD
(RAID volume limited to 5 hard drive per set,
setup using bundled utilities)Maximum Capacity 8TB Auto Rebuilding N/A Hot-Spare N/A Host Interface & Transfer Rate eSATA 3Gbps (via Port Multiplier) Drive Interface 8 x 3.5 SATA I/ SATA II Cooling Fan 4.7" Ball Bearing Fan Power Supply 300W (90V-264V) Control Interface N/A Status Indicators Status and Power LEDs Dimension (in) 5.9"W x 13.4"H x 13.4"D Weight (lb) 13 Safety Regulations CE, FCC, UL, RoHS Limited Watrranty 1 Years Package Contents TR8M-B (1)
Power Cord (1)
eSATA Cable (1)
2-Port eSATA PCIe Adapter Card (1)
Screws (1 set)
Quick Installation Manual & CD (1)
