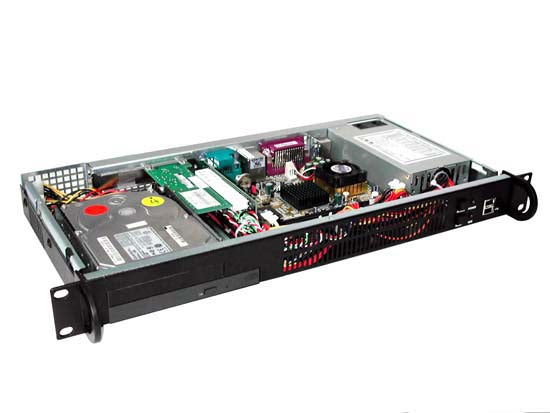

By comparison, this RM-1106 fit the Mini-ITXmotherboard as shown below:
But it does so with only 8.66" of depth. Yet still have capacity for1 x Slim Optical CD-Rom Drive and a 3.5" Hard Disk.
The 3.5" Internal Hard Disk can also be converted to space for one SlimFloppy Drive and Slim Notebook Hard Disk.
Support TFX power supply .
Possible Mini-ITX Motherboard that can be installed are:
VIA EPIA800
EPIA-ME6000A
EPIA-M10000
EPIA-MII12000
Freetech P6F212 (800Mhz CPU)
P6F169(1.2G CPU)
| System Boards: | Mini-ITX based boards |
| Motherboard Size: | Support Mini-ITX M/B (Max. 170mm x 170mm) 6.7" x 6.7" |
| Drive Bays: | 1 x Slim CD-ROM, 1 x 3.5" |
| Power Supply: | Needs 1U TFX ATX Power Supply (Rear Chassis Installation) |
| Cooling Units: | N/A |
| Expansion Slot: | 2 USB (Front) & 1 Horizontal Low-Profile Slot (Rear) |
| Indicators: | LEDs for Power and HDD Activity |
| Buttons: | Power On/Off and System Reset |
| Dimensions: | 483(W) x 44(H) x 220(D)mm (19" x 1.7" x 8.66") |
| Weight: | 14 lbs with PS installed, |
