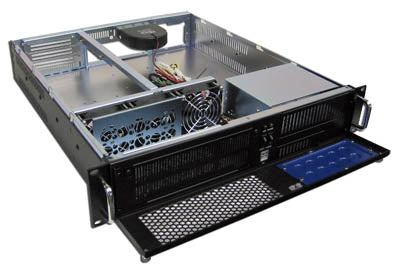

| RM-2214 20.7" Rackmount | |
| Construction: | Heavy Duty Cold Rolled Electroplated Steel |
| Color: | Black (Standard), Beige or Custom |
| System Boards: | Pentium 4, Dual Xeon, AMD 64, Dual Opteron |
| Motherboard Size: | Support EATX M/B (Max. to 12" x 13") |
| Drive Bays: | 1x 5.25", Slim CDROM, 1x 3.5?Open, 3x 3.5?#60;/p> |
| Power Supply: | (Rear Chassis Installation) 2U Single or Redundant Power Supply |
| Cooling Units: | 3x (80mm = 42.5CFM ea.) Ball Bearing Fan plus |
| Expansion Slot: | 3x Slot Horizontal OR 7x Vertical Low Profile PCI Slots |
| Connector Port (front): | 2x USB |
| Indicators: | LEDs for Power, 32x HDD Activity, 3x LAN, Fan Failure, Temperature Warning |
| Buttons: | Power On/Off Momentary (Thin Rocker) Switch, System Reset |
| Crossbar: | 2U Riser PCI Spanner Bar (for riser card) |
| Front Door(s): | Removable Single Door with 2x Thumbscrew |
| Air Filter: | Inside Front Panel (Washable) |
| Dimensions: (W x H x D): | 483(W) x 88(H) x 526(D) mm (19" x 3.5" x 20.7") |
| Weight: | 14.6kgs / 32.1lbs (approx.) |
| Product Applications: | Standard Server Box, Decoder, Encoder |
