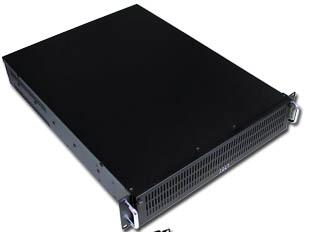

| EIA RM-2200 19" Rackmount Standard | |
| Construction: | Heavy Duty Cold Rolled Electroplated Steel |
| Color: | Black (Standard) or Custom |
| System Boards: | Pentium D, Dual Xeon (Maximum 12" x 10.5"), AMD 64 X2, Dual Opteron |
| Motherboard Size: | Support ATX M/B (Max. to 12 " x 10.5") |
| Drive Bays: | 4x 5.25", 1x FDD, 1x 3.5" |
| Power Supply: | (Rear Chassis Installation) 2U Single up to 510W or Redundant up to 400W ATX P/S (Optional) Max. Depth 265mm |
| Cooling Units: | 4x (80mm = 42.5CFM ea.) Heavy Duty Ball Bearing Fans |
| Expansion Slot: | 3x Horizontal Full Height Slots or 7x Vertical Low Profile Slots |
| Connector Port (front): | 2x USB Ports |
| Indicators: | LEDs for Power, HDD Activity, 2x LAN |
| Buttons: | Power On/Off & System Reset (Dimple Button) |
| Front Door(s): | Removeable Single Door with 2x Thumbscrew |
| Dimensions: (W x H x D): | 483 x 88 x 570mm (19.0" x 3.5" x 22.4") |
| Weight: | 12.7 kgs / 28.0 lbs |
| Cu. ft.: | 2.9 |
| Carton Size: | 56.2 x 20.3 x 71.3 (22.1" x 8.0" x 28.1") |
| Humidity: | 5% - 95% Non-condensing |
| Product Applications: | Multipurpose Server |
* Motherboard andother parts for display purposes only
*Extra Long Version Available
