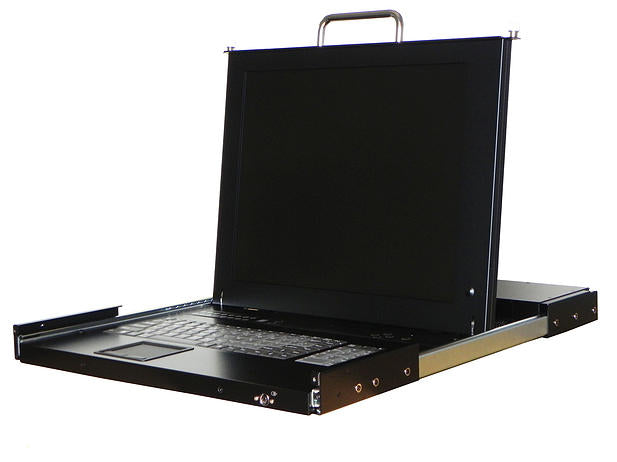

1U 17inch LED-LCD monitor with 16 portsCat.5 KVM switch & 104-key full size keyboard console, Touch pad mouse With 8 dongles (optional PS2 or USB).
FEATURE
Meets RoHS specification. Heavy-duty steel.
1U Height, clam shell style, folding console withthumb screw lock.
17" LED backlight LCD monitor with Anti-Glaresurface treatment
Detachable console for easy repair or replacement
104-Key full size keyboard
Internal power adapter
Integrated 16 ports CAT-5 KVM switch
Installations-RJ45 CPU connectors allow computersto be placed up to 30m (100 feet) away using inexpensive Cat 5E cable,and still maintain high video resolution
Mix PS/2 and USB interfaces via simple KVM Cat5Adapters or "Dongles" between the switch and computers
Easy Cat 5 setup-just connect the cables-Nosoftware required for installation
Intelligently manages k/ m booting
Auto scan for monitoring selected servers
Logically designed port selection switch layout
Supports Windows 9x/ NT/ 2000/ ME/ XP/VISTA,Windows /7/8, NetWare5.0, Linux, Free BSD,
Supports SUN & MAC with USB port
SPECIFICATIONS
LCD MONITOR
Display size: 17.0? SXGA+ LCD display
Resolution: 1280 x 1024 (RGB verticalstrip)
Number of colors: 16.7M
Viewing angle: 80 (V) / 85 (H) deg.
Bankwidth: 80MHz
Brightness: 250 cd/m (sq)
Contrast Ratio: 1000 : 1 (Typ)
Response time: 5 ms
Pixel pitch: 337.920(H) 270.336(V) mm
Backlights : LED light bar
Surface treatment : Anti-Glare, Haze=25%,Hard coating (3H)
KVM Switch
Computer connections: Direct 16
Daisy-Chain: Daisy Chain (Max.) 256
Port selection: OSD/Hot Key/Push Buttons
Computer ports (Keyboard/Mouse/VGA) : 16 sets:RJ45 (embedded)
Resolution: 1280x1024 max.
Flash upgrade port: Firmware upgradeable Via MiniDin 6 pin console mouse port
Adapter Available Distance: 30m max.
- Supports Windows 9x/ NT/ 2000/ ME/ XP/VISTA, Windows /7/8,NetWare5.0, Linux, Free BSD,
- Supports SUN & MAC with USB port
POWER
Power input : 100V - 240V AC / 48Hz - 62Hz
Power output : DC 12V, 4.2A
