FEATURE
Meets RoHS specification. Heavy-duty steel.

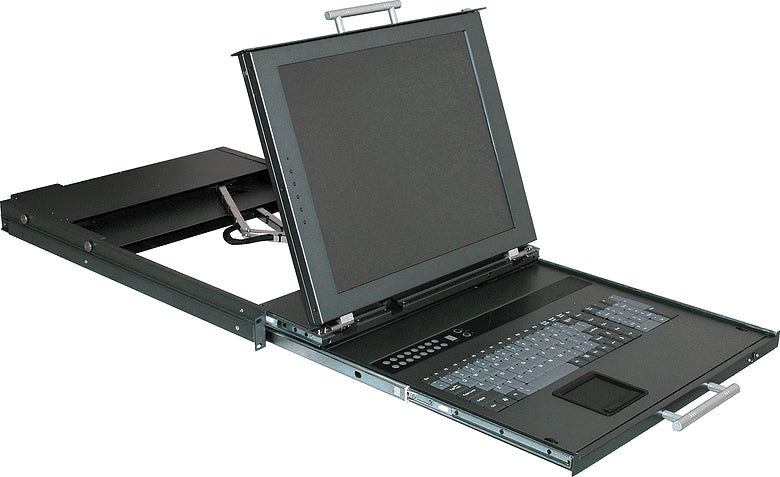

1U Height, Dual-Rail, clam shell style foldingconsole with key lock.
17" LCD monitor with Anti-Glare surface treatment.
104-key full size keyboard with Touch pad mouseand a flexible External Mouse port
Adjustable rackslides for the rack depth from 23 to 40 inches. DB 15 pin output Keyboard/ Mouse / Monitor, easywork with PS2 or USB interface.
Compatible with 8 or 16 ports PS2/USB/Cat.5 KVMswitches.
Supports Windows 9x/ NT/2000/2003/ME/XP/Vista,Windows 7, Net Ware5.0, Linux, Free BSD.
Supports Microsoft Intellimouse, LogitechFirstMouse+, MouseMan+, and others.
SPECIFICATIONS
LCD MONITOR
Display size: 17" TFT LCD display
Resolution: 1280 x 1024
(RGB verticalstrip) Number of colors: 16.2M
Optical frequency: H 30KHz - 70KHz/ V 55KHz- 75KHz
Viewing Angle: H 140 deg. /
V 130 deg. Bankwidth: 80MHz
Brightness: 300 cd/m (sq)
Contrast Ratio: 700 : 1 (Typ)
Response time: 8 ms
Pixel pitch: 0.264mm(H) x 0.264mm(V)
Backlights : CCFL
POWER
Power input : 100V - 240V AC /
48Hz - 62Hz Power output : DC 12V, 4.2A
