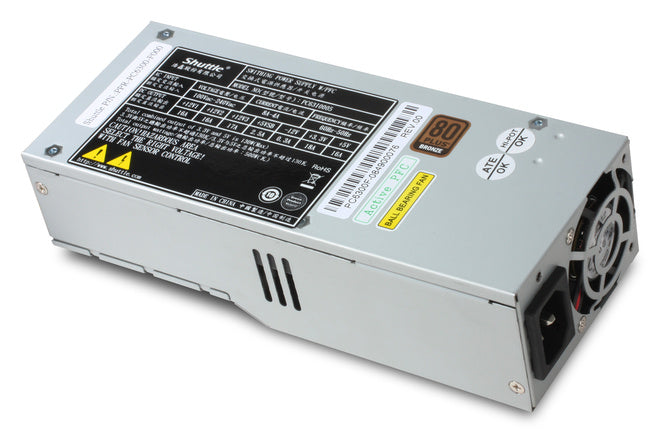

Shuttle PC63 80 Plus SilentX 500W Power Supply
  • Shuttle PC63 80 Plus SilentX 500W Power Supply
  • Shuttle PC63 80 Plus SilentX 500W Power Supply
Shuttle PC63 80 Plus SilentX 500W Power Supply
$171.00 $195.00
The Shuttle XPC Accessory PC63 provides the additional power for compatible Shuttle XPCs needed to satisfy the demands of high power graphics cards and large capacity storage devices. It is the optimal solution for power users wanting to upgrade without compromising the stability, low-noise, and portability of the XPC.

The power supply supports the following modes:

XPC COMPATIBILITY
  • SN78SH7, SG45H7, SP45H7, SX58H7
    		•

    Specifications

    Output Wattage
  • Total combined output: 500W max
  • Total combined out of 3.3V and 5V: 130W max
  • Active PFC circuit (Power Factor Correction)
    		•
    INPUT VOLTAGE/Frequency Range
  • 100~240V AC, 50/60Hz
  • (90~264V AC, 47~63Hz
    		•
    INPUT CURRENT
  • Max. 8A/4A for 115V/230V AC during normal operating
  • Inrush current: 60A/90A for 115V/230V AC
    		•
    DC voltage output, max. output current
  • +12V1: 16A
  • +12V2: 16A
  • +12V3: 17A
  • 5VSB: 2.5A (Standby)
  • -12V: 0.3A
  • +3.3V: 18A
  • 5V: 16A
    		•
    Power Connectors
  • 1 x ATX power 20 pins
  • 1 x ATX 12V power 4+4 pins*)
  • 1 x PCIe power 6 pins
  • 1 x PCIe power 6+2 pins
  • 3 x Serial ATA power
  • 2 x Molex power
  • 1 x Floppy power
    		•
    Output voltage timing
  • Hold up time: >17ms as full load at 115V AC
  • Rise time: <20ms at full load, nominal line
    		•
    Protection
  • Short circuit protection (SCP) - Latch off
  • Overpower (overload) protection (OPP)
  • Overcurrent protection (OCP)
  • Overtemperature protection (OTP)
  • Overvoltage protection (OVP)
  • Undervoltage protection (UVP)
    		•
    Efficiency
  • 80PLUS Bronze compliant
  • The PSU provides at least 82/85/82% efficiency at 20/50/100% load
    		•
    Certification
  • EMI/RFI: FCC class B, CE, BSMI, CCC
  • Safety: cUL, TV, CB, BSMI, CCC
  • Timing, housekeeping and control conform Intel ATX12V Specific Guidelines 2.3
    		•
    Mean Time Between Failures (MTBF)
  • > 100.000 hours at 75% load, 25C
    		•
    Temperature
  • Operating temperature: +10C ~ +50C
  • Storage temperature: -40C ~ +70C
    		•
    Noise
  • <30dB at 50cm for 200W load
  • Ball bearing fan with thermal Fan-speed control
    		•
    Dimensions
  • 200 x 82 x 53 mm (L x W x H)
    		•
    Weight
  • net weight: 2.5 lb
  • gross weight: 2.7lb
    		•
