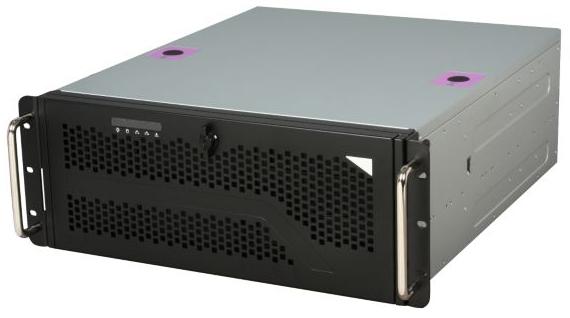

IN-WIN IW-R400-00-00 4U Rackmount Case
  • IN-WIN IW-R400-00-00 4U Rackmount Case
  • IN-WIN IW-R400-00-00 4U Rackmount Case
IN-WIN IW-R400-00-00 4U Rackmount Case
$235.00 $250.00

I-Win IN-R400 4U Rack Mount Case

Model Name
IW-R400
Standard
EIA-RS310D
M/B Form Factor
ATX (12" x 9.6"), CEB (12" x 10.5")
Dimension(D x W x H)
508 x 482.6 x 177.8 mm (20" x 19" x 7")
Drive Bays
External: 5.25" x 3, 3.5" x 2,
Internal: 3.5" x 3
Power Supply
Form Factor: PS/2, Mini-Redundant
Indicator
Power Status, HDD/LAN Activity LEDs
Front Control Panel
Power ON/OFF, System Reset, 2 x USB 2.0
Security
Intrusion Switch
Cooling Fan
1 x 120*25mm front fan.
Optional: 2 x 80*25mm rear fans (easy-swap)
Slot Opening
7
Riser Card
N/A
Material
SGCC
Sheet Metal Thickness
1.2mm
Net Weight
(Chassis Only)
12.3 Kg / 27lbs
Gross Shipping Weight
17.8 Kg / 40lbs *Dimensional Weight may be evenhigher per Carrier's formula
Packaging Dimension(D x W x H)
20" x 19" x 7"  or 720 x 640 x 340 mm
Features&Benefits

Tool-less design for easy installation& lower maintenance cost
Superior cooling through front air intake
Single or Redundant power supply option
Front door with lockable for data security
Less vibration issue

Our Customer's Favorite Functions:
1. 5.25" Drive Space can sitHorizontally as seen below or changed to Vertical Drive Space.2. Screw-Less Snap-Off Top Cover.3. Quick and Easy Front Fan Accessvia Fan Door using Thumbscrew
IW-R400 4U Case, Door opens
Takes unless than 5 seconds toUn-screw the Fan Door Thumbscrew and
to Swing open the Fan Cage to access the Front 120mm Intake Fan In Win R400 4U Takes unless than 5 seconds to Un-screw the Fan Door Thumbscrew and Swing open the Fan Cage to access the Front 120mm Intake Fan
