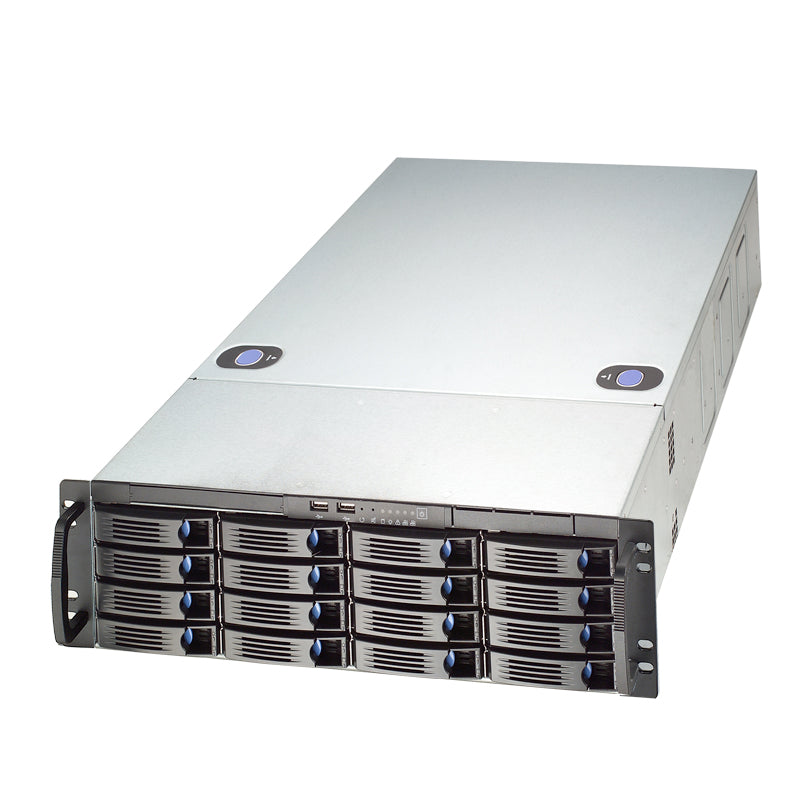

Chenbro RM31616E3-R875 3U 16-port 12Gbps, Mini-SAS HD, Expander
  • Chenbro RM31616E3-R875 3U 16-port 12Gbps, Mini-SAS HD, Expander
  • Chenbro RM31616E3-R875 3U 16-port 12Gbps, Mini-SAS HD, Expander
Chenbro RM31616E3-R875 3U 16-port 12Gbps, Mini-SAS HD, Expander
$1,690.00
Order Code
RM31616M
Description
3U DP , 16 x H/S HDDs , Miini SASBP , Ideal For Enterprise High Dense Storage Server
M/B Form Factor
EEB (12"X13")
Processor
Intel / AMD DP Quad
Support Backplane
Mini-SAS
Security
Intrusion Switch
Chassis Dimension
D x W x H (mm) 660 x 432 x 132 (mm)
D x W x H (inch) 26" x 17" x 5.2"
Power Supply
Form Factor 2U Single or 1+1 RPSU
Watt Option
Redundancy Option
Drive Bay
Hot-Swap 3.5" 16
Slim ODD 1
Slim FDD 1
Generality
Metal Material SGCC
Metal Thickness 1.2 mm
Plastic Material Type ABS-HB
Expansion Slots
FF 7
System Cooling
Middle 4 x 8038 mm PWM
Rear Window
7-Slot
Slide Rail
Option
Front Panel
Front Control Power On/Off
System Reset
Alarm Mute
Indicator Power Status
HDD Activity (x1)
LAN Activity (x2)
FAN Failure / Overheat
Ports USB2.0 (x2)
