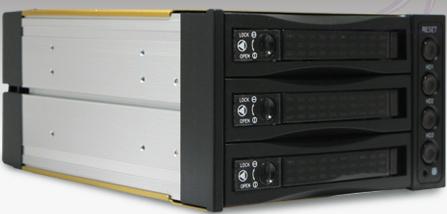

BP-SAC2131B Hot-Swappable 3 Hard Drive Raid Backplane SATA / SAS Combo

BP-SAC2131B is a high-end, large capacity data backup systemdesigned to hold up to three 3.5 SATA or SAS Hard Drives. Its aluminumhousing and 80mm rear cooling fan keeps the unit function at itsoptimal capacity. It is an ideal solution for internal server RAID andJBOD applications. It supports SATA and SAS drives with data transferrates of up to 3G and 6G respectively. Its unique design strategicallyutilizes only two 5.25 drive bay slots to house three 3.5 drives formaximum space-saving. Multiple LED indicators show the power, fanstatus and individual drives activity. Parallel connection to otherSAS devices is not applicable. (SAS raid control function require 4 ormore SAS HDDs. No HDD minimum limitation on SATA raid control function.)

Specifications:
  • Plug & Play
  • Support Hot-Swap, RAID 0 / 1 / 5
  • All Aluminum Design with Conductive Dissipation Grooves
  • Power Control w/Molex 4pins or SATA 15pins connector,Sensor & Alarm
  • The Safety Tri-angle Lock Safeguards the Hard Drives
  • Super Air Ventilation & Heat Sink with 80mm Fan
  • Patent Balance Handle - No Skew In/Out
  • Capacity Up to 1TG (1HD), 3TG (3HD)
  • Data Transfer Rate Up to 3G(SATA) / 6G(SAS)
  • 7D SATA Data Cable Included
  • Dimensions (W x H x D): 146 x 86 x 202 mm
  • Weight: 8 lbs/per unit, 8pcs / Box
  • RoHS ready
  • Color: Black
