Specifications

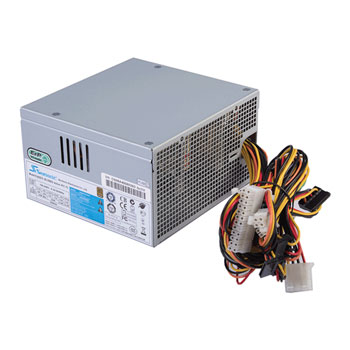

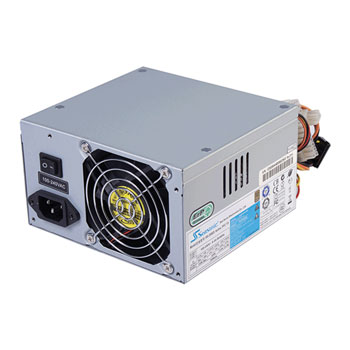

Seasonic SS-600ES 600W 80 Plus Bronze ATX12V V2.31 Power Supply
- Mfr Part Number: SS-600ES BRONZE; PS-SS-600ES
- Features:
- Specification compliance: ATX12V V2.31
- Support the latest Intel & AMD Socket
- PCI-Express & SATA ready
- Double forward converter circuit
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection & Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- Total Power: 600 W
- Input Frequency Range: 47 ~ 63 Hz
- Inrush Current, Cold Start: 100A max
- Efficiency: >= 82%
- Line Regulation: +/-1% typical
- Load Regulation: +/-5% typical
- Cross Regulation: +/-5% typical
- Ripple / Noise: 1%
- Power Factor Correction: Active PFC, 99% typical
- Safety: CUL, TUV, CB, CCC
- EMI/RFI: CE, FCC, C-tick
- MTBF: >100k hrs
- Output: +3.3V @ 24A, +5V @ 24A, +12 @ 46A, -12V @ 0.8A, +5Vsb @ 2.5A
- Connectors: 1x 24/20pin Main Power, 1x 4pin Power Connector, SATA connector, Floppy Connector, HDD Connector
- Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 150.0 x 86.0 mm
- RoHS & WEEE compliant
