- Intel EPS 12 V compliant
- 80 PLUSŪ Gold certification (up to 90 % efficiency at 115 V AC and 50 % load)
- DC to DC converter design
- High efficiency and reliability
- Fully modular cables
- 60 mm double ball bearing fan
- Seasonic S3FC (including Fanless mode)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
Specifications

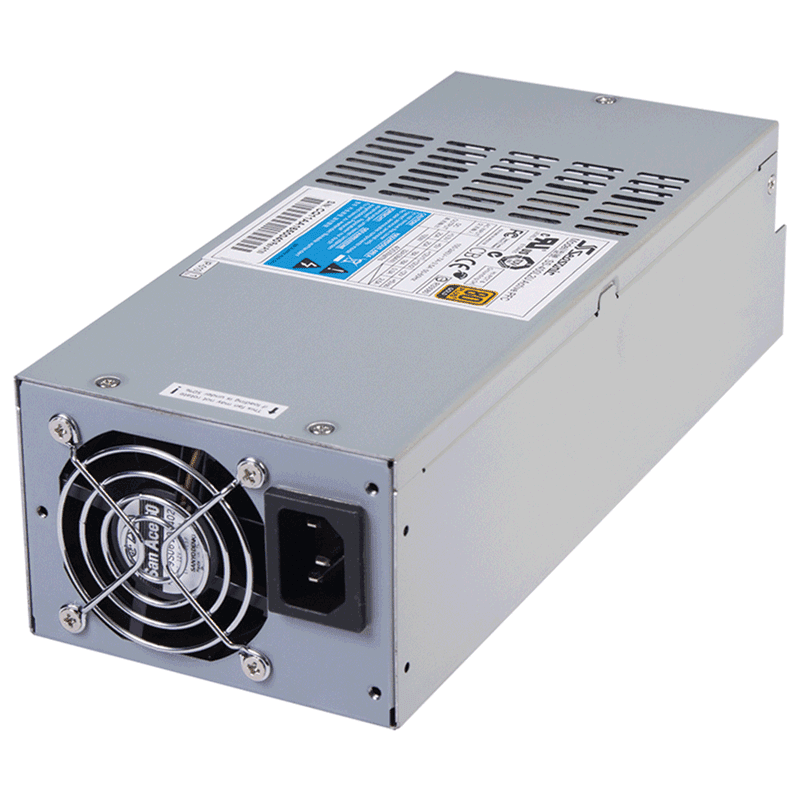

Seasonic SS-500L2U 500W 80 Plus Gold EPS12V 2U Server Power Supply
Seasonic Part Number: SS-500L2UFeatures
Specifications
- Total Power: 500W
- Input Type: Full Range
- Input Frequency: 47/63 Hz
- Inrush Current, Cold Start: 100A max
- Efficiency: > 87%
- Ripple/Noise: 1%
- MTBF, full load @ 25oC amb. (Excluding the DC fan): >100K hours
- Power Factor Correction: Active PFC, 99% typical
- Safety: CUL, TUV, CB
- EMC: CE, FCC, C-tick
- Output: +3.3V @ 20A, +5V @ 20A, +12V @ 40A, -12V @ 0.3A, +5Vsb @ 2.5A
- Connectors: Customized modular cables
- Dimensions (WxLxH): 3.9 x 9.6 x 2.8 inch / 100.0 x 245.0 x 70.0 mm
