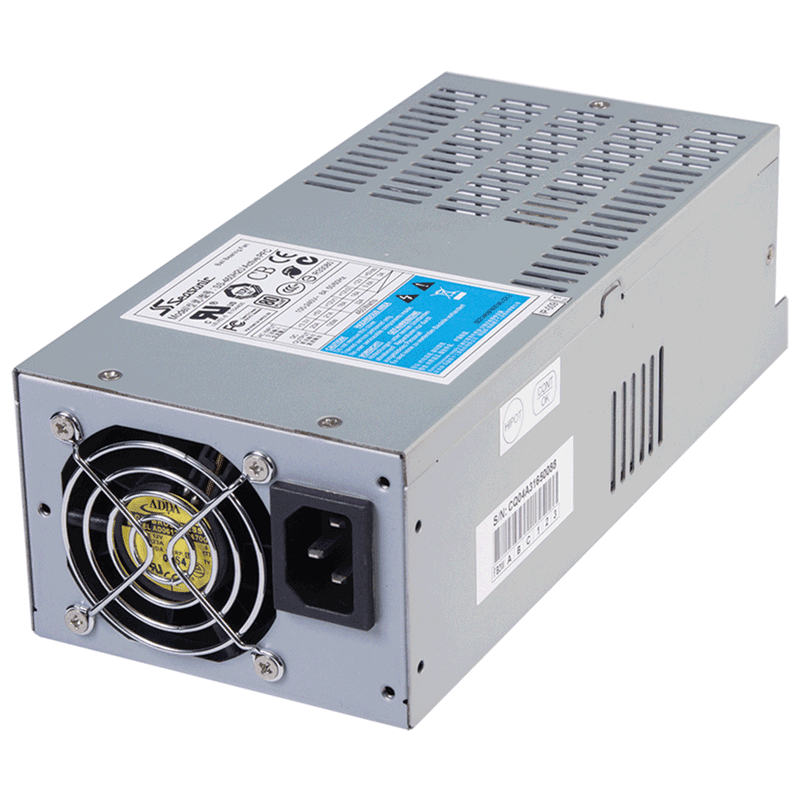

Seasonic SS-400H2U 80+ 400W 2U Single Server Power Supply
Seasonic SS-400H2U 80+ 400W 2U Single Server Power Supply
Seasonic SS-400H2U 80+ 400W 2U Single Server Power Supply
Model: SS-400H2U
$99.99

Specifications
Seasonic SS-400H2U 80+ 400W 2U Single Server Power Supply
Seasonic Part Number: SS-400H2U

Features

  • Intel EPS 12 V compliant
  • Forward converter circuit
  • High efficiency and reliability for industrial level
  • Fully modular cables
  • Easy-swap connector design
  • 60 mm double ball bearing fan
  • Smart and Silent Fan Control (S2FC)
  • Zero minimum load on 3.3 V rail
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100 % HiPot test
  • 100 % Burn-in, high temperature cycled on/off
  • PFC harmonics compliance: IEC1000-3-2 and EN61000-3-2 standards

Specifications


Total Power -- 400 W

Input Voltage -- 100Vac / 240Vac

Input Frequency -- 50 / 60Hz

Input Current -- 7A

Fan Type -- 60 x 38mm

Active PFC (99%)

High Efficiency (80%)

DC Outputs:

-- +3.3V: 20A

-- +5V: 21A

-- +12V1&+12V2: 16A

-- -12V: 0.8A

-- +5Vsb: 2A

Safety -- CB, CUL, UL, TUV, CCC

EMI/RFI -- CE, FCC, C-tick

RoHS & WEEE compliant


Dimension -- 225mm(8.9") x 100mm(3.9") x 70mm(2.7")
