Specifications

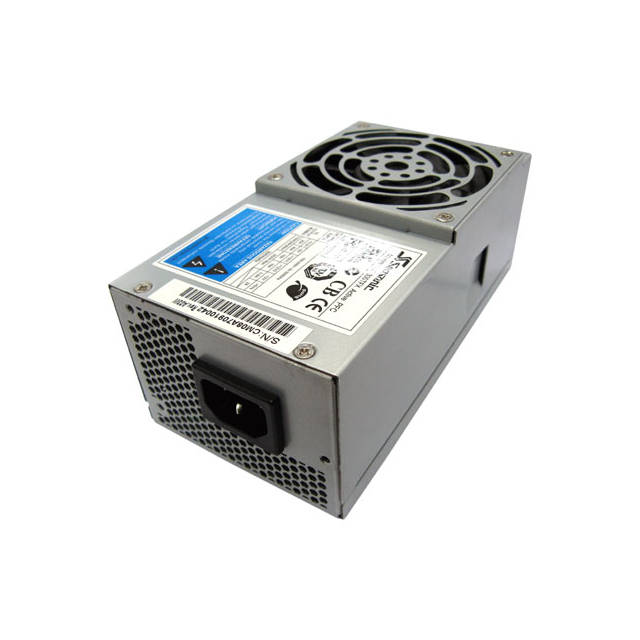

Seasonic SS-300TFX 300W TFX12V v2.3 80PLUS Active PFC Power Supply
- Mfr Part Number: SS-300TFX
- Features:
- Specification compliance: TFX 12V v2.31
- Pentium 4 ready with P4 connectors
- Forward converter circuit
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- Total Power: 300 W
- Input Voltage: 100~240 V
- Input Frequency Range: 47 ~ 63 Hz
- Input Current: 5A max.
- Inrush Current: 100A max, cold start
- Hold-up Time: 12 ms
- Power Factor Correction: Active PFC, 99% typical
- Safety: CUL, TUV, CB
- EMI/RFI: CE, FCC, C-tick
- Output: +3.3V @ 20A, +5V @ 20A, +12V @ 21A, -12V @ 0.8A, +5Vsb @ 2A
- Connector: 1x 20/24pin Main; 1x 4pin 12V CPU, SATA , HDD, FDD
- Cooling System: 1x 8cm Double Ball Bearing Fan
- Dimension (WxLxH): 3.3 x 6.9 x 2.8 inch / 85 x 175 x 70 mm
- RoHS Compliant
