Specifications

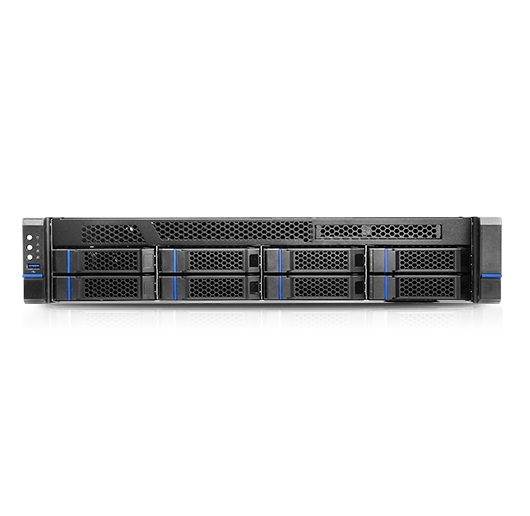

CHENBRO Rackmount RM23808M3RP8U4 2U Dual 8x3.5 inch 2x2.5 inch 12Gb/s HDD Flexible Mini-SAS
| Form Factor | 2U |
| MB Form Factor | E-ATX (12” x 13”) |
| Dimensions (D x W x H) | 659.4 x 432 x 88.1 (mm) 25.96” x 17” x 3.47” |
| Drive Bays | 3.5" Hot-swap：8 Slim ODD：1 Internal 2.5"：2 |
| PSU Form Factor | 2U Single or 1+1 Redundant |
| Indicators | 1 x Power Status 1 x HDD Activity 2 x LAN Activity 1 x Fan Failure & Overheat |
| Front Control | 1 x Power On/Off 1 x System Reset 2 x USB2.0 |
| System Security | Intrusion Switch (Option) |
| Cooling Fans | Middle: 3 x 80mm (T=25mm), PWM, MAX, Rear: 2 x 40mm (Option) |
| Expansion Slots | 3x Full Height & Length or 7x Low Profile |
| HDD Backplane | 12Gb/s |
| Net Weight | 11.0kg |
| Gross Weight | 12.7kg |
