Specifications
iStarUSA D-412S3-MATX-DT 4U Rackmount Case 13.5" Deep Micro ATX

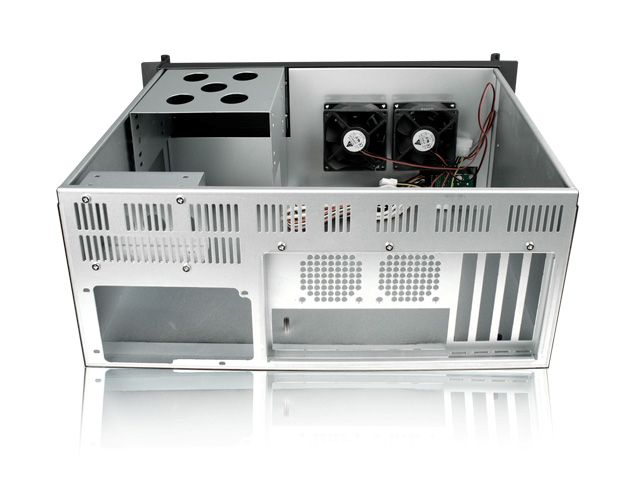

RM-4412 is a
reliable and stable 4U-high 13" depth industrial computer chassis. The
full size I/O supports all microATX motherboard with a Dual-core/
Quad-Core processors and the backplane supports 4 full-height add-on
cards. This chassis has only 13กจ in depth and equipped with two intake
80mm cooling fans at front as standard for air ventilation. In
addition, RM-4412 supports a standard ATX PS2 power supply to meet
regular server system applications.
- Industrial Chassis with 13.5" in Depth
- Supports Front Access USB2.0 x2
- 80mm x2 Cooling Fan
- Power and HDD LED
- Power and Reset Switch
- Support 2 x 2.5" Hard Drives
- Support ATX PS2 Power Supply
- Support 4 x Full Height Add-on Cards
| RoHS Compliance Version | Yes |
| Standard Drive Bays |
|
| Mainboard Size (inch) | 9.6 x 9.6 (micro-ATX) |
| Cooling Fan [Option] | 2x80mm [2x60mm] |
| Indicators | LEDs for Power ON/OFF & HDD |
| Switches | Power ON/OFF & Reset |
| Expansion Slots | Support 4 x full height cards |
| Material | Metal/ Aluminum |
| Power Supply | Support ATX PS2 power supply |
| Color of Main Chassis | Black |
| Front Connector | Front USB 2.0 x 2 Connector |
| Dimensions (W x H x D) | 19 x 7 x 13.5 inch |
