Ready for a Big Storage Server Project!!
RM-4120 12 Bay Fortress 19" Black Rack Mount CaseRackmount Case, Rackmount Cases, SCSI Raid Rackmount
If there ever was a need for 12Bay Rack Mount Case, this high Capacity R4120 Case will do the job. There are 2 Intaked and Filtered Cooling fans sandwiched between the 2 front left and right Drive Cages. As External Drive Spaces, each cage will hold 3 x 5.25 plus 1 x 3.5 Bay for a combined 8 Drive Spaces behind the Fold Down Front Lockable Door. As for Internal Drive Spaces, a 2 x 3.5 HD Cage was hung along the center support beam that runs across the middle of the case. Of course, if you have room to spare without interfering the motherboard, a Second HD Cage Option and additional Fan Option can be added to provide the total 12Bay Capacity and Extra Cooling. The R4120 can handle Standard or Redundant Power Supply Options from the Intel Pentium Family (Pentium to Dual Xeon) and the AMD Athlon (K7 to Dual MP). It truly is a 4U Rack Mount Case of a big heart and a big mind.

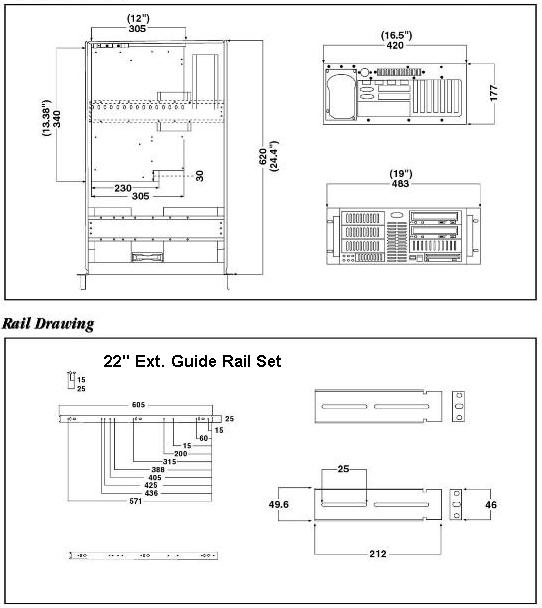

- Dimensions: 7"(H) x 19"(W) x 24.5"(D)
- Industrial standard 19", 4U metal chassis
- EIA RS310C 19 inches Rack-Mount standard
- Larger than usual 12Bay capacity for a 4U 19" Case
- A whooping 8 External Drive Spaces ( 6 x 5.25" + 2x 3.5")
- 2 Standard Internal 3.5" HD Spaces + 2 Optional Internal 3.5" HD Spaces
- Space for Baby / Full AT or Standard / Extended ATX board
- PS2, ATX or Redundant Power Supply compatible
- 2 Front cooling fan behind filter included
- One more cooling fan upgrade available
- Lockable front door covers drive bay, Power & Reset buttons
- Adjustable hold-down clamp for full-length cards
- Removable air filter
