Specifications

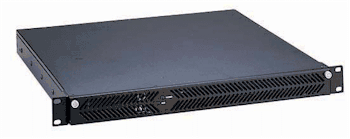

RM-1110 1U 17.7" Deep Rackmount Chassis
| Product Information |
| Standard: | EIA RS-310C 19" Rackmount Standard |
| Construction: | Heavy Duty Cold Rolled Electroplated Steel |
| Color: | Black (Standard), Beige or Custom |
| Drive Bays: | (Option A): 1x Slim CD-ROM, 3.5"HDD & 1x Slim FDD, 3.5"HDD & 1x 3.5"HDD (Option B): 1x5.25" & 1x3.5"FDD & 1x3.5"HDD |
| Power Supply: | 1U Single up to 350W ATX P/S(Rear Installation) Max. Depth 205mm |
| Cooling Units: | 2x (40 x 20mm = 7CFM ea.) & 3x (40 x 10mm) Fans |
| Expansion Slot: | 1x Horizontal PCI Slot |
| Connector Port (front): | 2x USB Ports |
| Max. Board Size: | ATX (12" x 9.6") |
| Buttons: | Power ON/OFF Momentary (Rocker), System Reset |
| Crossbar: | |
| Thermal Card: | NA |
| Front Door(s): | Single Door With 2 Thumbscrews |
| Air Filter: | None |
| Dimensions(W x H x D): | 483 x 44 x 450mm (19" x 1.7" x 17.7") |
| Weight: | 10.0kgs / 22.1lbs |
| Cu. ft.: | |
| Carton Size: | 61.5 x 17.9 x 60 (24.2" x 7.1" x 23.6") |
| Humidity: | 5% - 95% Non-condensing |
| Product Applications: |
