Model: KVM-1610K

KVM-1610K 1U Cat.5 Network 16 Port KVM
  • Small Form Factor V compact, lightweight yet sturdy enclosure, ideal for free standing and 1U rack mounted installations
  • Manage up to 16 servers (256 with daisy-chain) from a single PS/2 console

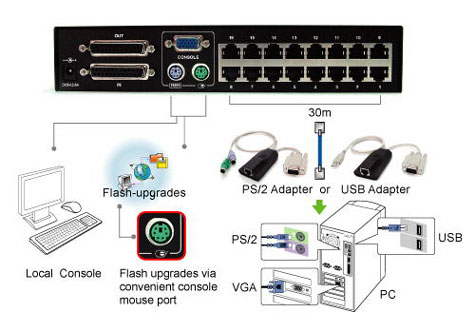

  • Mix PS/2 and USB interfaces via Hamster CAT5 dongles* between the switch and computers
  • Computer selection via Intelligent On Screen Display (OSD) Menu, Hot Keys or Push Buttons
  • OSD Port List Display auto expands when switches are daisy-chained
  • Auto-Sensing of Bank Position on cascaded installations - eliminate need for manual DIP switch setting
  • Auto Scan - monitor user-selected computers
  • Hot Pluggable V add / remove computers without powering down the Switch
  • Password Security V prevent unauthorized access to computers
  • Flash memory with free lifetime firmware upgrades V maintains compatibility with latest devices
  • Lockable power supply connector on the Black CAT unit reduces accidental power cable disconnect.
  • PS/2 keyboard and mouse emulation V for error free booting
  • Excellent video quality - supports resolutions of up to 1280x1024@30M (100ft)
  • Easy CAT5 setup V just connect the cables and power V no software necessary for installation
Max Computer Connections: 16 (256 in a daisy-chain environment)
Max Daisy-Chain Level: 16
Port LEDs: 16
Port selection: OSD / Hot Key / Push Buttons
Computer ports:
Keyboard/Mouse/VGA: 16 x RJ-45 (embedded)
Console ports:
Monitor: 1 x VGA HDDB 15 pin Female
Keyboard: 1 x PS/2 mini-DIN6 Female
Mouse: 1 x PS/2 mini-DIN6 Female
Max Resolution (@ Distance): 1280 x 1024 @ 30M
Dimensions(H x W x D): 43 x 235 x 140 mm
Weight: 1 Kg
Enclosure: Metal with plastic faceplate
Form Factor 1U rack mountable
Flash Upgrade Port: Firmware upgradeable via mini-DIN6 console mouse port
Power Supply: External DC 12V, 1A
Operation and storage parameters:
Operating temperature: 32 ~104K (0 ~ 40J)
Storage temperature: -4 ~ 140K (-20 ~ 60J)
Humidity: 0 ~ 80% RH, non-condensing
Certifications CE, FCC, VCCI
