Specifications
FSP Group FSP700-802UK 2U 700W Server Power Supply
| Model Name | FSP700-802UK | |
|---|---|---|
| Wattage | 700W | |
| Dimension | 240mm (L) x 100 mm (W) x 70mm (H) or
9.45" (L) x 3.94" (W) x 2.75" (H) Inch |
|
| Product Highlight | Efficiency Level | 80 Plus Bronze |
| General Specification | Effciency | 85% 230VAC |
| Voltage Regulation | +3.3V, +12V, +5V, +5SB: 5% -12V: 10% |
|
| Input Electrical Specification | Input Frequency | 47 ~ 63 Hz |
| Input Current | 115V@ 10.0 Amps-rms maximum 230V@ 5.0 Amps-rms maximum |
|
| Output Specification | Hold-up time | 115V/60Hz 17mSec. Minimum@100% Load, 230V/50Hz 17mSec. Minimum@100% Load |
| Ouput Voltage Regulation | +3.3Vdc output : +3.7 Vdc minimum, + 4.8Vdc
maximum +5Vdc output : +5.7 Vdc minimum, + 7Vdc maximum +12Vdc output : +13.4 Vdc minimum, + 16Vdc maximum |
|
| Ripple & Noise | 115V-rms/230V-rms 5V 20ms Maximum 115V-rms/230V-rms 12V 20ms Maximum |
|
| Over current protection | 3.3V:50mV p-p 5V:50mV p-p 12V1:120mV p-p 12V2:120mV p-p 12V3:120mV p-p 12V4:120mV p-p -12V:120mV p-p 5Vsb:50mV p-p |
|
| Environmental Requirement | Temperature Range | Operating : 0 to +50℃ Storage :-20 to +80℃ |
| Humidity | Operating : 5-85% to % RH, Non-condensing Storage : 5-95% to % RH, Non-condensing |
|
| MBTF | The power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25℃, maximum-output load, and nominal AC inout voltage | |
| Safety | CE,FCC,TUV,UL/cUL | |
Output Voltage and Current Rating
| +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | -12V | +5Vsb | |
|---|---|---|---|---|---|---|---|---|
| Ripple-Noise(R-P) mV | 50mV | 50mV | 120mV | 120mV | 120mV | 120mV | 120mV | 50mV |
| Regulation Load % | 5% | 5% | 5% | 5% | 5% | 5% | 10% | 5% |
| Output Max.(A) | 24A | 30A | 16A | 16A | 16A | 16A | 0.5A | 4A |
| Output Min.(A) | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A | 0.05A | 0.1A |
Notes
- 5V, 3.3V, 12V, -12V Will have the regulation to 10% when all load take off.
- The +3.3V and +5V total output shall not exceed 180 watts.
- The total output shall not exceed 700 watts
* 80 Plus Bronze
* Low Ripple & Noise
* Output over voltage protection
* Short circuit protection on all outputs
* Resettable power shut down
* Four +12V output (+12V/1,+12V/2,+12V/3,+12V/4)
* 100% burn-in under high ambient temperature(50℃)
* Vacuum-impregnated transformer
* MTBF:100K hours at 25℃
* 100% Hi-pot tested
* Line input fuse protection

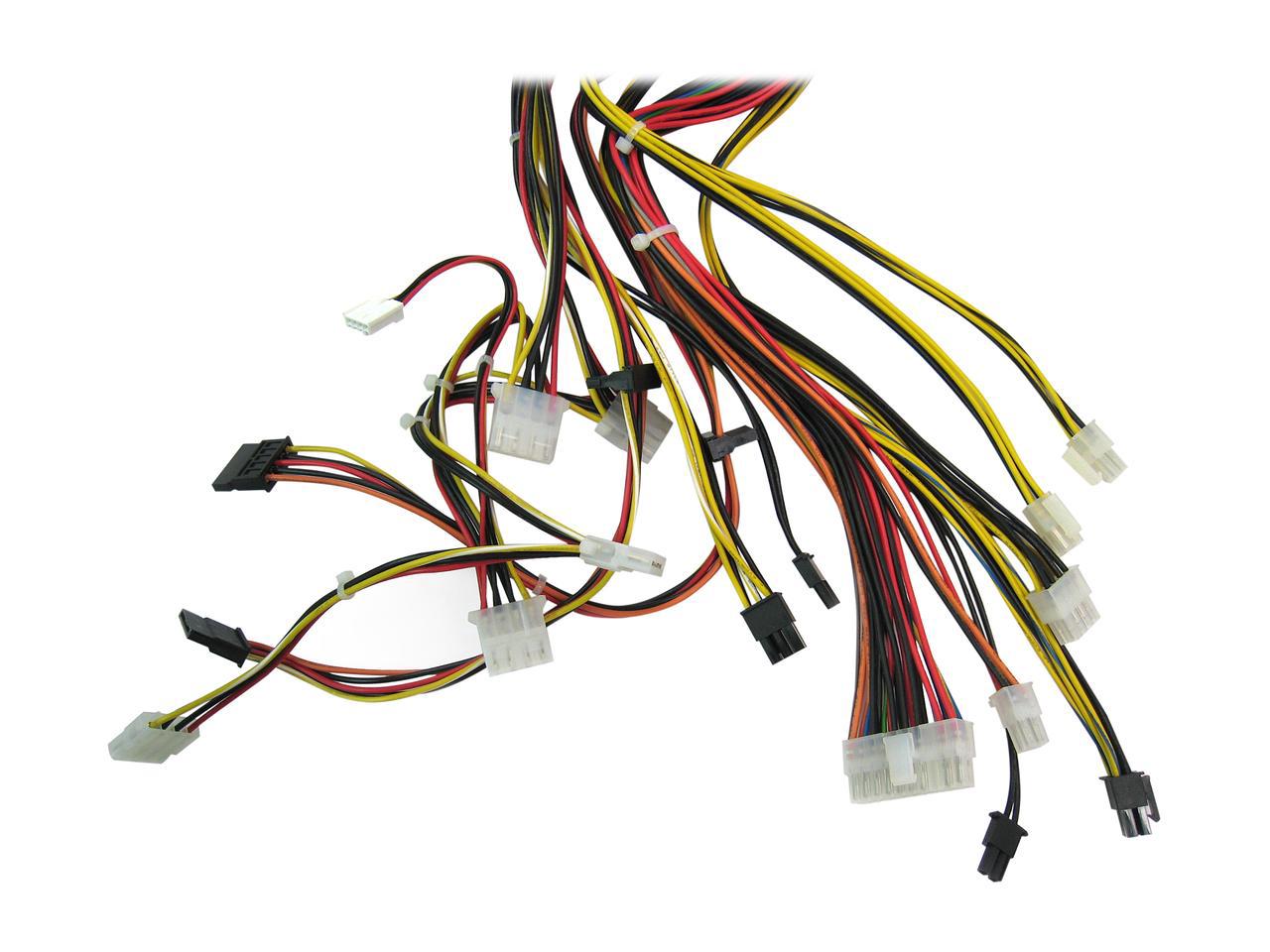

OUTPUT CONNECTORS:
Main 20 + 4-Pin, (2) 12V 4-Pin, (1) EPS 8-Pin, (2) PCI-E 6+2-Pin, (5) Molex 4-Pin, (4) Serial-ATA, (1) FDD 4-Pin
