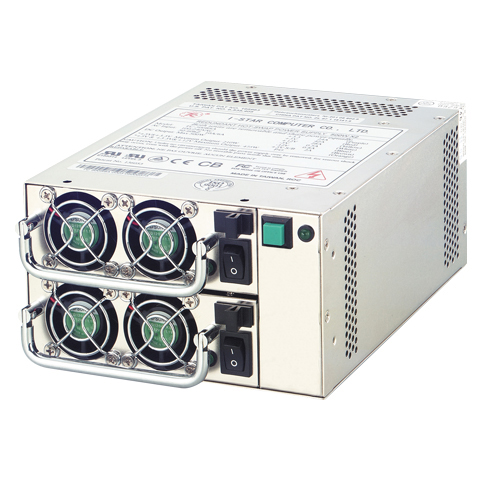

TC-500R8A-FM 500W Front Mount Mini Redundant Power supply
Model: TC-500R8A-FM
$359.00
$339.00

Specifications
TC-500R8A-FM 500W Front Mount Mini Redundant Power supply
> AC Input:
- VOLTAGE: 100~240V, (115/230 auto)
- FREQUENCY: 50/60Hz
- INPUT CURRENT: 8A/4A For 115/230VAC
- INRUSH CURRENT: 60A/80A MAX FOR 115/230
OUTPUT
VOLTAGE
OUTPUT CURRENT
REGULATION
OUTPUT
MIN(A)
MAX(A)
LOAD
LINE
RIPPLE & NOISE
MAX.[P-P]
+5V
3
42
5%
1%
50mV
+12V
2
28
5%
1%
120mV
-5V
0.1
0.5
10%
1%
150mV
-12V
0.1
0.8
10%
1%
150mV
+3.3V
1
24
5%
1%
50mV
+5VSB
0.1
2
5%
1%
50mV

The combined output power +5V&+3.3V shall not exceed 210W.
The total power shall not exceed 500W.
> DIMENSION: D199 X W150 X H86mm
> COOLING: By forced air 2x40mm Fan (Each module)
> TEMPERATURE RANGE: Operation 0˚C~50˚C
> HOLD UP TIME: 16ms at maximum load & normal input voltage
> EFFICIENCY: 67% TYPICAL(Normal Line)
> ATX 12V / EPS 12V
> POWER GOOD SIGNAL: Should be asserted high to indicate that+5VDC and +3.3VDC
   output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms.
> OVER POWER PROTECTION: The power supply shall shout down output power exceeds 130% to 160%
> OVER VOLTAGE PROTECTION: Standard on +5.0V, set at 6.25VDC 0.75VDC
> SHORT CIRCUIT PROTECTION: A short circuit placed between the DC return and
   the output shall cause no damage and the power supply shall shutdown.
> EMI: FCC part 15, subpart B, Class B, EN55022 CISPR22 Class B.
> AGENCY APPROVALS: UL60950, CAN/CSA22.2 No.60950, TUV(IEC60950)
> MTBF OF POWER SUPPLY ELECTRONNIS: 100,000 hours. Life expctancy of fan 40,000 hours
