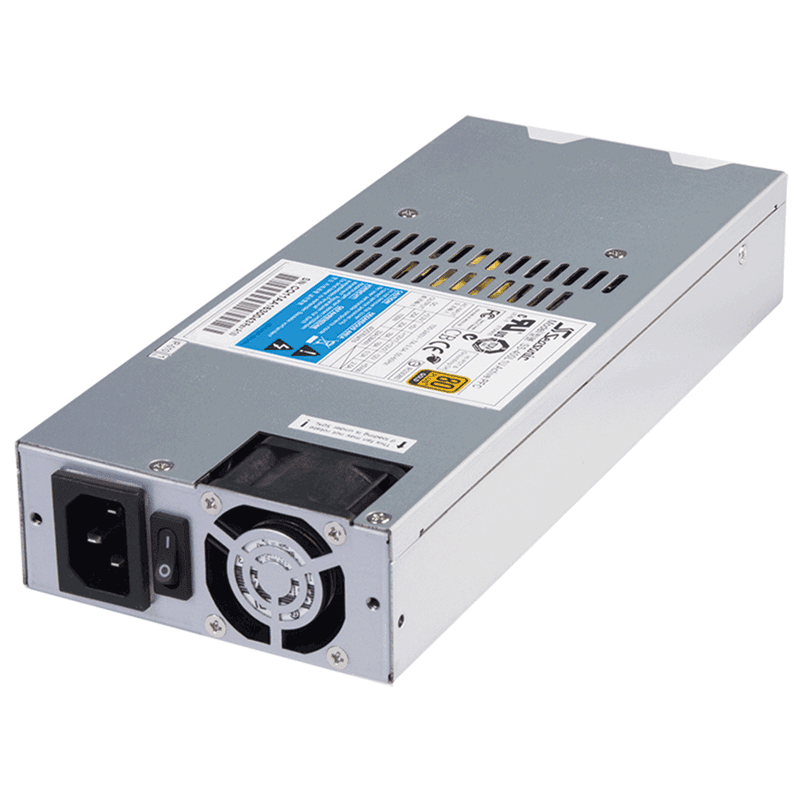

SeaSonic SS-500L1U 500W 80PLUS Gold 1U Server Power Supply
SeaSonic SS-500L1U 500W 80PLUS Gold 1U Server Power Supply
SeaSonic SS-500L1U 500W 80PLUS Gold 1U Server Power Supply
Model: SS-500L1U
$109.00

Specifications
SeaSonic SS-500L1U 500W 80PLUS Gold 1U Server Power Supply
Information

• High efficiency and reliability

• Low THD

• Low ripple & noise

• Super low noise fan control

• Short circuit protection on all outputs

• Over voltage protection

• Over power protection

• 100% hi-pot test• 100% burn in, high temperature cycled on/off



Specifications


DC Output:
AC Input: 100240Vac 50/60Hz

DC INPUT:
3.3V/20A /100W
5V/20A/100W
12V/40A/480W
-12V/0.3A
5Vsb/0.3A

Total Power :
500W

Item Dimension (L"xW"xH"):
9.3 x 3.9 x 1.6

Connectors:
ATX Connector 24 Pin x 1
EPS-12V 8 Pin x 1
P4-12V 4 + 4 Pin x 1
PCIE 6 Pin x 1
SATA 15 Pin x 4
Molex 4 Pin x 5
Floppy 4 Pin x 1
