BP-SAC3051B Hot-Swappable SATA/SAS Hard Drive Backplane for 5 HDs
BP-SAC3051B Hot-Swappable SATA/SAS Hard Drive Backplane for 5 HDsBP-SAC3051B Hot-Swappable SATA/SAS Hard Drive Backplane for 5 HDs
BP-SAC3051B Hot-Swappable SATA/SAS Hard Drive Backplane for 5 HDs
Model: BP-SAC3051B
$109.00

Specifications
BP-SAC3051B Hot-Swappable SATA/SAS Hard Drive Backplane for 5 HDs

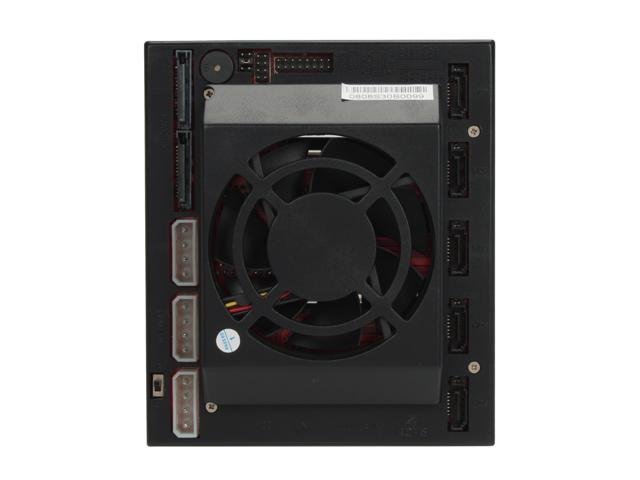

BP-SAC3051B is designed to house up to five 3.5กจ SATA or SAS Hard Drives. Its rear-mounted 80mm cooling fan keeps the unit function at its optimal capacity. BP-SAC3051B is an ideal solution for internal server RAID and JBOD applications. It supports SATA and SAS drives with data transfer rates of up to 3G and 6G respectively. Its unique design strategically utilizes only two 5.25กจ drive bay slots to house five 3.5กจ drives for maximum space-saving. Multiple LED indicators show the power, fan status and individual drive activity. This high-end data storage unit works with all servers or workstations to increase hardware efficiency. Parallel connection to other SAS devices is not applicable


Specifications:
  • Plug & Play
  • Support Hot-Swap, RAID 0 / 1 / 5 / 10
  • All Aluminum Design with Conductive Dissipation Grooves
  • Power Control w/Molex 4pins or SATA 15pins connector, Sensor & Alarm
  • The Safety Tri-angle Lock Safeguards the Hard Drives
  • Super Air Ventilation & Heat Sink with 80mm Fan
  • Patent Balance Handle - No Skew In/Out
  • Capacity Up to 1TG (1HD), 5TG (5HD)
  • Data Transfer Rate Up to 3G(SATA) / 6G (SAS)
  • 7D SATA Data Cable Included
  • Dimensions (W x H x D): 126 x 146 x 216 mm
  • Weight: 11 lbs/per unit, 6pcs / Box
  • RoHS ready
  • Color: Black
